Write a Notebook #3 - Multi-Selection support

In the last chapter, we showed you how to display notes and notebooks on the user interface. In this chapter, you will see how to select items in multi-selection mode.

It is very common to support multiple selections in an application. It enables users to do an operation efficiently on multiple items at the same time. But, indeed, it is also a headache for every developer. To support multi-selection, you usually need to consider the following problem:

How to trigger it?
How to distinguish selected ones?
How to track selection?
How to perform actions on selected items?
How to exit multi-selection mode?

Fortunately, there are already numerous solutions available in open-source communities. Here, we will give you a quick introduction about how to do it with DevBricksX facilities.

How to trigger it

It is not difficult to enable multi-selection in your application with DevBricksX. You only need to do a few things:

Implement interface SelectableListItem on objects you want to use multi-selection
Inherit your adapter from AbsListAdapter or AbsPagedListAdapter
Call setSelectionEnabled() when you want to enable this feature

If you use Adapter annotation to generate the adapter, as we introduced in the last chapter, your adapters are ready to support multi-selection.

Now, let us implement SelectableListItem interface in our objects. In the last two charpters, we derive Note and Notebook from a pre-defined class Record. The Record class does not implement SelectableListItem. But, there is another pre-defined class, called SelectableRecord, which does the exact thing what we want. Here is its implementation:

@RoomCompanion(primaryKeys = ["id"],
        autoGenerate = true,
        converters = [DateConverter::class]
)
open class SelectableRecord(id: Int = 0) : Record(id), SelectableListItem {

    @Ignore
    var selected: Boolean = false

    override fun isItemSelected(): Boolean {
        return selected
    }

    override fun setItemSelected(selected: Boolean) {
        this.selected = selected
    }

}

SelectableRecord derive from Record and uses a field selected to store the selection state. Since selected is just an in-memory state and shouldn't be store in the database, it is annotated with Ignore annotation. DevBricksX annotation processors will ignore this field when generating codes.

You may notice that SelectableRecord is also annotated with RoomCompanion. Due to the implementation of DevBricksX annotation processors, if a class is annotated with RoomCompanion, all the classes in its inherent chain should be annotated with RoomCompanion. Otherwise, you will get errors thrown by kapt.

The updated version of Note and Notebook is:

@RoomCompanion(primaryKeys = ["id"],
        autoGenerate = true,
        converters = [DateConverter::class],
        extension = NotebookDaoExtension::class,
        database = "notes",
)
@ViewModel
@Adapter(viewType = ViewType.Customized,
        paged = false,
        layout = R.layout.layout_notebook,
        viewHolder = NotebookViewHolder::class)
@ListFragment(layout = R.layout.fragment_recycler_view_with_new_button,
        superClass = AbsMultiSelectionListFragment::class)
open class Notebook(id: Int = 0) : SelectableRecord(id) {

    @JvmField var name: String? = null
    @Ignore var notesCount: Int = 0

}

@RoomCompanion(primaryKeys = ["id"],
        autoGenerate = true,
        extension = NoteDaoExtension::class,
        database = "notes",
        foreignKeys = [ ForeignKey(entity = Notebook::class,
                parentColumns = ["id"],
                childColumns = ["notebook_id"],
                onDelete = ForeignKey.CASCADE
        )]
)
@ViewModel
@Adapter(viewType = ViewType.Customized,
        layout = R.layout.layout_note,
        viewHolder = NoteViewHolder::class)
@ListFragment(layout = R.layout.fragment_recycler_view_with_new_button,
        gridLayout = true,
        superClass = AbsMultiSelectionListFragment::class)
class Note(id: Int = 0) : SelectableRecord(id) {

    @JvmField var notebook_id: Int = -1
    @JvmField var title: String? = null
    @JvmField var desc: String? = null

}

The last thing that we need to do is to call setSelectionEnabled(). We call it in onViewCreate() of NotesFragmentExt and NotebooksListFragmentExt

override fun onViewCreated(view: View, savedInstanceState: Bundle?) {
    super.onViewCreated(view, savedInstanceState)

    ...
    adapter?.setSelectionEnabled(true)
    ...
}

Then, multi-selection is enabled both for Note and Notebook.

How to distinguish selected ones

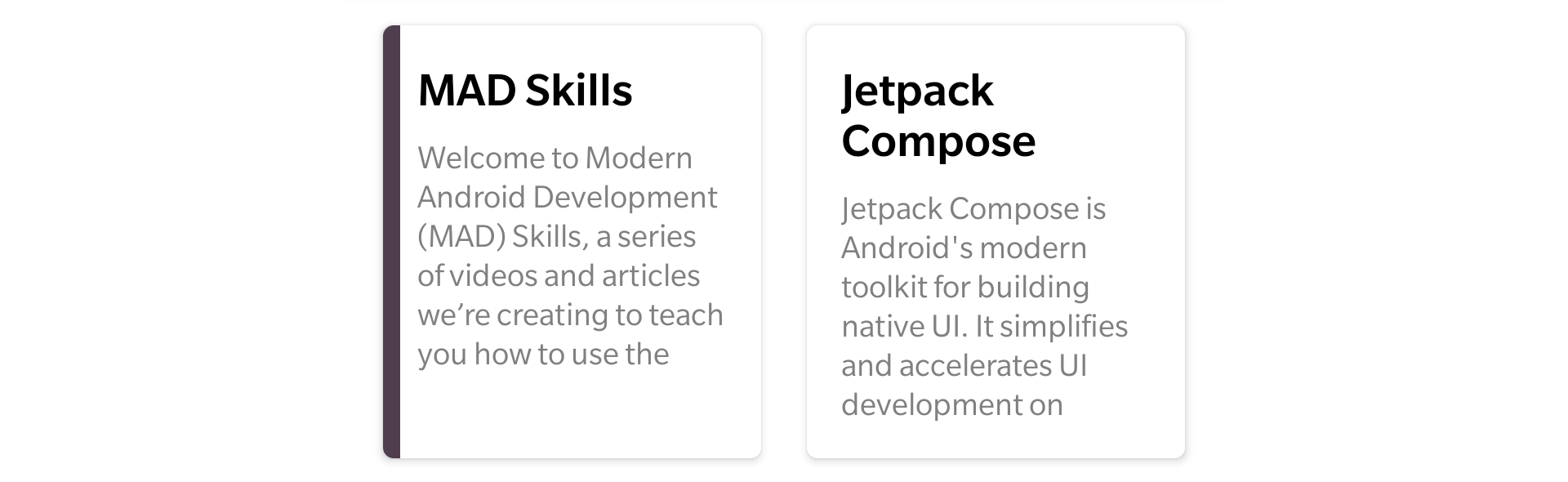

After multi-selection is enabled, a long-press on any item will enter the multi-selection mode. In this sample notebook, we display a narrow bar with primary color at the left side of selected items, see the example below:

To implement this design, you need to add a bar in layout and override bind() in ViewHolder class and change the user interface according to different selection state.

Using Note as the example, we add a narrow bar layout_note.xml

<?xml version="1.0" encoding="utf-8"?>
<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
	android:paddingStart="@dimen/lv_item_space_h"
	android:paddingEnd="@dimen/lv_item_space_h"
	android:paddingTop="@dimen/lv_item_space_v"
	android:paddingBottom="@dimen/lv_item_space_v"
	android:layout_width="match_parent"
	android:layout_height="match_parent">

	<androidx.cardview.widget.CardView
		android:id="@+id/list_item_root"
		style="@style/DefaultCardView"
		android:layout_width="match_parent"
		android:layout_height="match_parent">

		<View
			android:id="@+id/selected_handler_start"
			android:background="@color/colorPrimary"
			android:layout_gravity="center_vertical|start"
			android:layout_width="@dimen/selector_width"
			android:layout_height="match_parent"/>

...

And, here are extra codes in NoteViewHolder:

override fun bind(item: Note) {
    super.bind(item)

    val handlerVisibility = if (item.isItemSelected()) {
        View.VISIBLE
    } else {
        View.GONE
    }

    val selectedHandlerStart: View? =
    	itemView.findViewById(R.id.selected_handler_start)

    selectedHandlerStart?.visibility = handlerVisibility
}

The bar's visibility is changed according to return value of item.isItemSelected(). When user clicks on items in multi-selection mode, adapters provided in DevBricksX will call item.setItemSelection() to change this value.

How to track selection

DevBricksX define an interface OnSelectionChangedListener to track any change in multi-selection mode:

interface OnSelectionChangedListener<Item> {

    fun onSelectionStarted()
    fun onSelectionStopped()
    fun onSelectionChanged(selectedItems: List<Item>)

}

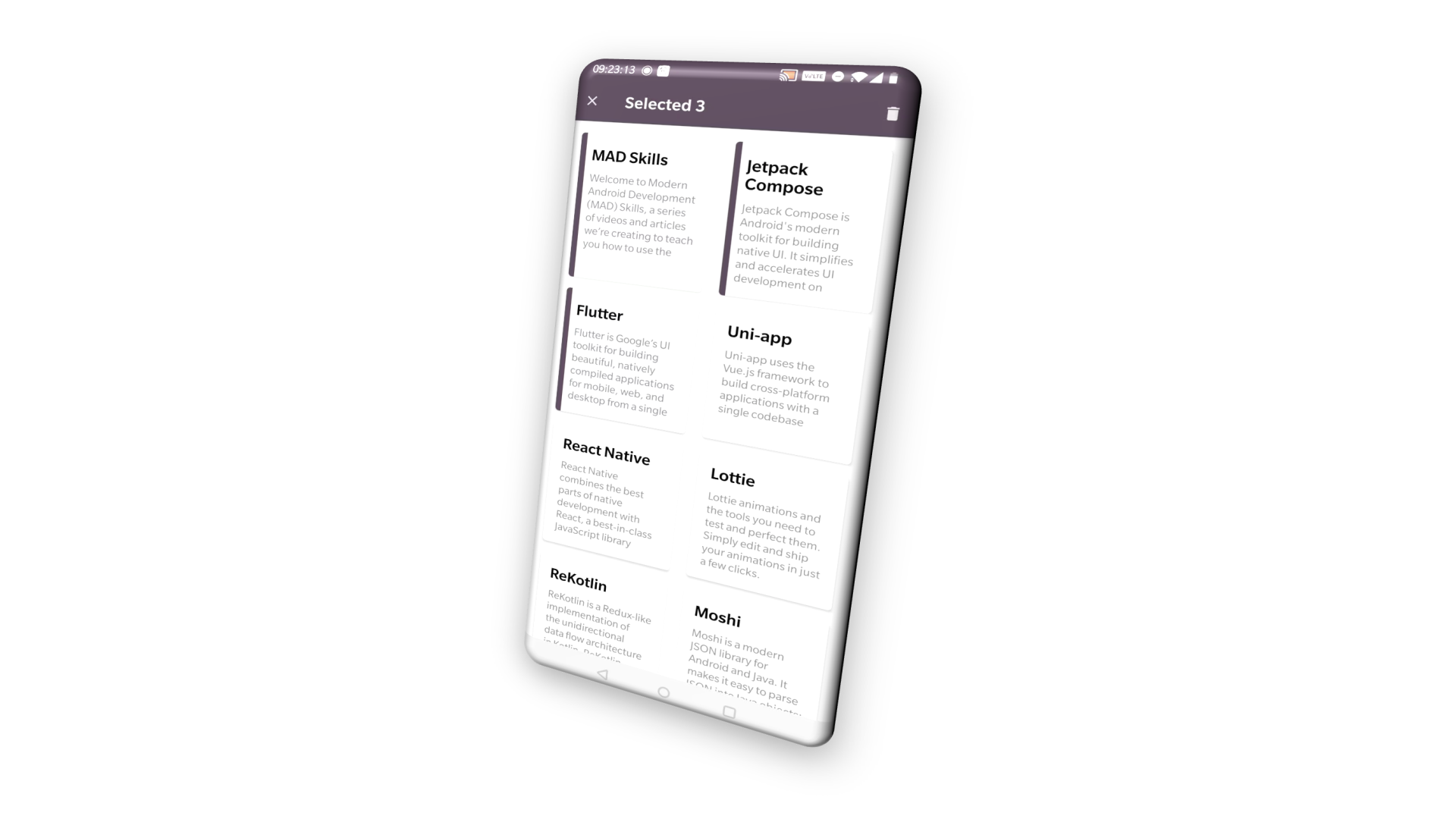

You can call adapter.setOnSelectionChangedListener() to track by yourself. But, if you are using ListFragment, generated fragments include shortcut functions at ease. For example, in NotesFragmentExt, we want to display the count of selected items in the action bar. We override onSelectionChanged() of the fragment instead of implement a listener.

override fun onSelectionChanged(selectedItems: List<Item>) {
    super.onSelectionChanged(selectedItems)

    val count = selectedItems.size

    if (count > 0) {
        changeTitle(getString(R.string.prompt_selection, selectedItems.size))
    } else {
        changeTitle(null)
    }
}


protected open fun changeTitle(title: CharSequence?) {
    val actionBar = findActionBar() ?: return

    actionBar.title = title
}

How to perform actions on selected items

When user finishes the selection, you need to perform the action on those selected items. In NotesFragmentExt, we provide users an option to delete selected items at one time. Here is the code:

override fun onOptionsItemSelected(item: MenuItem): Boolean {
    return when (item.itemId) {
        R.id.menu_delete -> {
            if (adapter?.isInSelectionMode() == true) {
                val items = adapter?.getSelection()
                items?.let {
                    performDeletion(it)
                }
            } else {
                Logger.warn("not in selection mode, skip")
            }

            true
        }

        else -> return super.onOptionsItemSelected(item)
    }
}

private fun performDeletion(items: List<Note>) {
    MaterialAlertDialogBuilder(context)
            .setTitle(R.string.label_delete)
            .setMessage(R.string.prompt_deletion)
            .setPositiveButton(android.R.string.ok) { _, _ ->
                val viewModel =
                        ViewModelProvider(this)
                                .get(NoteViewModel::class.java)
                for (item in items) {
                    viewModel.deleteNote(item)
                }
            }
            .setNegativeButton(android.R.string.cancel) { _, _ ->
            }
            .show()
}

When a user clicks on the "Delete" item in the options menu, we call adapter.getSelection() to get selected items and pop up a dialog to make confirmation before doing the real deletion.

How to exit multi-selection mode

The last step in the entire process is to exit the multi-selection mode. By simply calling adapter.stopSelection(), you can exit multi-selection immediately.

Here is the example of exiting selection then pressing the back key:

override fun onActivityCreated(savedInstanceState: Bundle?) {
    super.onActivityCreated(savedInstanceState)

    onBackPressedCallback = requireActivity()
            .onBackPressedDispatcher.addCallback(viewLifecycleOwner, false) {
        val adapter = adapter?: return@addCallback

        if (adapter.isInSelectionMode()) {
            adapter.stopSelection()
        }
    }
}

Summary

In this chapter, you know how to implement multi-selection with DevBricksX. Till now, we have accomplished the most difficult parts of a notebook application. Next time, I will show you how to put these parts together.
